CITO PROplus RYU

CITO PROplus RYU

Special double-crease without a center piece for premium180° folding of products made from corrugated board.

Details

H x W/D mm H x W/D mm H x W/D mm H x W/D mm
0.6 x 5.0/3 0.7 x 5.0/3 0.8 x 5.0/3 1.0 x 5.0/3
0.6 x 7.0/5 0.7 x 6.0/4 0.8 x 6.0/4 1.0 x 6.0/4
0.6 x 8.0/5 0.7 x 7.0/5 0.8 x 7.0/5 1.0 x 7.0/5
  0.7 x 8.0/5 0.8 x 8.0/5 1.0 x 8.0/5
  0.7 x 9.0/6.5 0.8 x 9.0/6.5 1.0 x 9.0/6.5

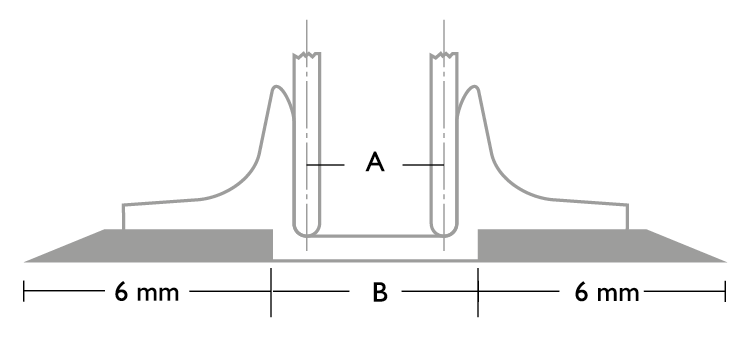

D = creasing rule distance center/center
W = creasing channel width
C = 3 pt/1.05 mm


Further sizes regarding creasing channel depth, width and locator available upon demand

contents of box 50 x 70 cm = 35 m

Note: Alongside CITO PROplus RYU, we will continue to offer CITO PRO RYU (made from pressboard) in our range as previously.

CITO PROplus RYU

CITO PROplus RYU

CITO PROplus RYU creasing matrix and cutting tool with 2 creasing rules

CITO PROplus RYU

CITO PROplus RYU creasing matrix, mounted. The transfer profile is stuck at the outside of the creasing rules.

CITO PROplus RYU

After removal of the transfer profile the creasing matrix is ready for use.

Cardboard with creasing

Cardboard with creasing

Cardboard with creasing

Cardboard with creasing; 90° folding

Cardboard with creasing

Cardboard with creasing; 2 times 90° folding
