CITO PROplus RY

CITO PROplus RY

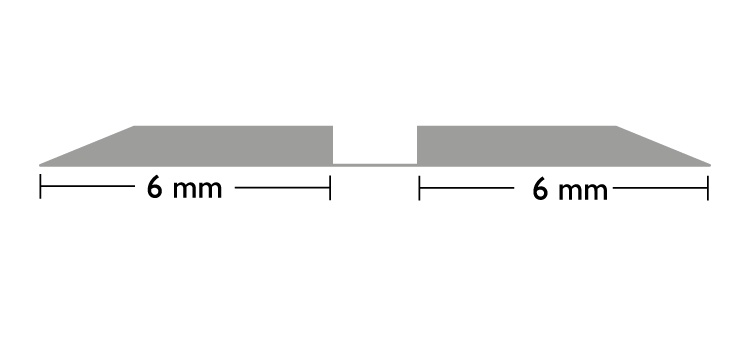

Film-based creasing matrix made from CITOTHAN: the worldwide leading creasing matrix. Creasing matrices are available in 700 mm lengths for the highest level of precision and quality.

Details

H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm
0.3 x 0.6 0.4 x 0.6 0.5 x 0.7 0.6 x 0.8 0.7 x 1.5 0.8 x 1.7 1.0 x 2.3 1.2 x 4.0 1.5 x 4.0
0.3 x 0.7  0.4 x 0.7 0.5 x 0.8 0.6 x 1.0 0.7 x 1.7 0.8 x 1.9 1.0 x 2.5 1.2 x 4.5 1.5 x 5.0
0.3 x 0.8  0.4 x 0.8 0.5 x 1.0 0.6 x 1.2 0.7 x 1.9 0.8 x 2.1 1.0 x 2.7 1.2 x 5.0 1.5 x 6.0
0.3 x 1.0 0.4 x 1.0 0.5 x 1.1 0.6 x 1.3 0.7 x 2.1 0.8 x 2.3 1.0 x 3.0 1.2 x 6.0
0.3 x 1.1 0.4 x 1.1 0.5 x 1.2 0.6 x 1.4 0.7 x 2.3 0.8 x 2.5 1.0 x 3.2
0.3 x 1.2 0.4 x 1.2 0.5 x 1.3 0.6 x 1.5 0.7 x 2.5 0.8 x 2.7 1.0 x 3.5
0.3 x 1.3 0.4 x 1.3 0.5 x 1.4 0.6 x 1.6 0.7 x 2.7 0.8 x 3.0 1.0 x 4.0   1.7 x 5.0
0.3 x 1.4 0.4 x 1.4 0.5 x 1.5 0.6 x 1.7 0.7 x 3.0 0.8 x 3.2 1.0 x 4.5   1.7 x 6.0
0.3 x 1.5 0.4 x 1.5 0.5 x 1.6 0.6 x 1.9 0.7 x 3.2 0.8 x 3.5 1.0 x 5.0
0.3 x 1.6 0.4 x 1.6 0.5 x 1.7 0.6 x 2.1 0.7 x 3.5 0.8 x 4.0 1.0 x 6.0
0.3 x 1.7 0.4 x 1.7 0.5 x 1.9 0.6 x 2.3 0.7 x 4.0 0.8 x 4.5 1.0 x 7.0
  0.4 x 1.9 0.5 x 2.1 0.6 x 2.5   0.8 x 5.0
    0.5 x 2.3 0.6 x 2.7   0.8 x 6.0
    0.5 x 2.5 0.6 x 3.0
    0.5 x 2.7 0.6 x 3.2
      0.6 x 3.5
      0.6 x 4.0
      0.6 x 5.0

Further sizes regarding creasing channel depth, width and locator available upon demand

contents of box 50 x 70 cm = 35 m

for 4 - 6 Pt. (1.42 - 2.10 mm) creasing rule width

H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm
      0.6 x 3.0/2   0.8 x 3.0/2 1.0 x 3.0/2
      0.6 x 3.2/2   0.8 x 3.2/2 1.0 x 3.5/2
      0.6 x 3.5/2   0.8 x 3.5/2 1.0 x 4.0/2
      0.6 x 4.0/2   0.8 x 4.0/2 1.0 x 5.0/2

Further sizes regarding creasing channel depth, width and locator available upon demand

contents of box 50 x 70 cm = 35 m

for 8 Pt. (2.84 - 3.00 mm) creasing rule width

H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm H x W mm
      0.6 x 5.0/3   0.8 x 5.0/3 1.0 x 5.0/3 1.2 x 5.0/3 1.5 x 5.0/3
          0.8 x 6.0/3 1.0 x 6.0/3 1.2 x 6.0/3 1.5 x 6.0/3
            1.0 x 7.0/3


Further sizes regarding creasing channel depth, width and locator available upon demand

contents of box 50 x 70 cm = 35 m

Note: Alongside CITO PROplus RY, we will continue to offer CITO PRO RY (made from pressboard) in our range as previously.
