CITO PLAST Hinge Crease

CITO PLAST Scharnierriller

Special product for corrugated board which requires creases that can be folded on both sides up to 90 degrees.

Details

colour height width contents order no.
blue 1.50 mm 2.00 mm 28 m ACE00001

contents of box 40 x 70 cm = 28 m

CITO PLAST Hinge Crease

CITO PLAST hinge crease Special product for corrugated board requiring creases that can be folded on both sides up to 90 degrees.
Hinge Crease is suitable for 90° bendings in both directions; for bendings of 180° + 90°, however, we cannot make any guarantee.
Processing is possible for E and B flutes with a lamination of max. 230 gsm (maximum residual thickness of the compressed material = 0.7 mm); no guarantee with stronger laminations.

Creasing rule width with E flute = 3 pt., creasing rule width with B flute = 4 pt. Creasing rule height is calculated according to the hinge crease formula.

Precondition for a functioning of this technique is use of suitable printing inks and lacquers as well as a residual humidity of the material right for processing. As these factors of influence play an important role in processing CITO cannot take over a general guarantee for functioning; this would require appropriate tests with original material.




We recommend using the creasing rules (3 pt) reversed in the cutting die.

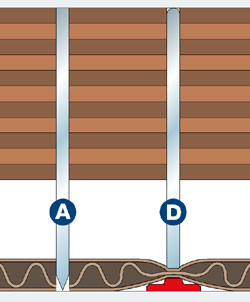

Legend
A = cutting rule height
B = compressed corrugated board
C = hinge crease height (1.5 mm)
D = creasing rule height
Formula
D = A - C - B


CITO PLAST Hinge Crease

CITO PLAST hinge crease, mounted

CITO PLAST Hinge Crease

Removing the liner

CITO PLAST Hinge Crease

After removal of the transfer profile the creasing matrix is ready for use.
