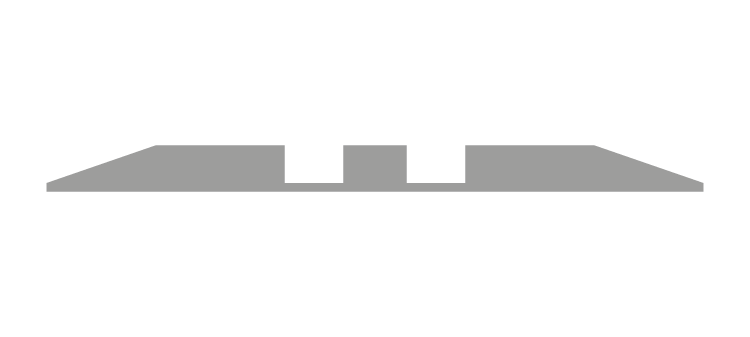

Double creasing on a metal base for material between 200 - 300 gsm. Distance between channels center/center.
Details
| size | colour | height | width | locator for creasing rule width | space between channels | contents | order no. |
|---|---|---|---|---|---|---|---|
| double 3.0 mm | white | 0.45 mm | 1.30 mm | 2-3 pt | 3.0 mm | 14 m | ACC01001 |
| double 3.5 mm | white | 0.45 mm | 1.30 mm | 2-3 pt | 3.5 mm | 14 m | ACC01002 |
| double 4.0 mm | white | 0.45 mm | 1.30 mm | 2-3 pt | 4.0 mm | 14 m | ACC01003 |
| double 5.0 mm | white | 0.45 mm | 1.30 mm | 2-3 pt | 5.0 mm | 14 m | ACC01004 |
Example: AC01001 distance between channels center/center = 3.0 mm
Contents of box 20 x 70 cm = 14 m
