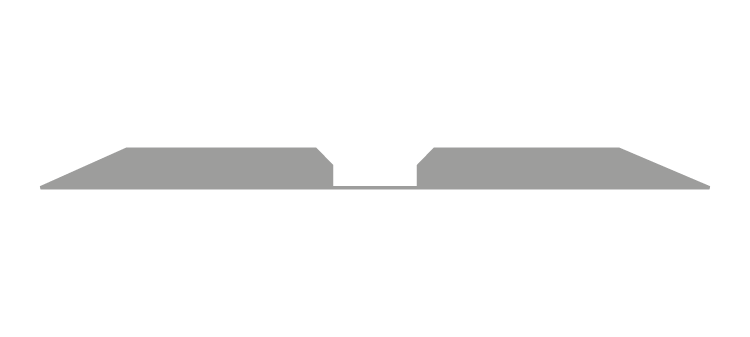

Creasing system for high-value products made from corrugated board. Inside chamfering reduces tensile stress and this prevents the surface ot the material from cracking, the economic alternative for low runs!
Details
| Profiles for creasing rules of widths 3 - 4 pt. | 4 - 6 Pt. | ||||
|---|---|---|---|---|---|
| IK 10 mm | IK 12 mm | IK 15 mm | |||
| H x W mm | H x W mm | H x W mm | H x W mm | H x W mm | H x W mm |
| 0.6 x 2.1 | 0.7 x 2.3 | 0.8 x 2.3 | 1.0 x 3.0 | 0.8 x 3.5 | 1.0 x 4.5 |
| 0.6 x 2.3 | 0.7 x 2.5 | 0.8 x 2.5 | 1.0 x 3.2 | ||
| 0.6 x 2.5 | 0.7 x 2.7 | 0.8 x 2.7 | 1.0 x 3.5 | ||
| 0.6 x 2.7 | 0.7 x 3.0 | 0.8 x 3.0 | 1.0 x 4.0 | ||
| 0.6 x 3.0 | 0.7 x 3.2 | ||||
10 mm, contents of box 50 x 70 cm = 35 m
12 mm, contents of box 50 x 70 cm = 35 m
15 mm, contents of box 40 x 70 cm = 28 m
Further sizes regarding creasing channel depth, width and locator available upon demand
